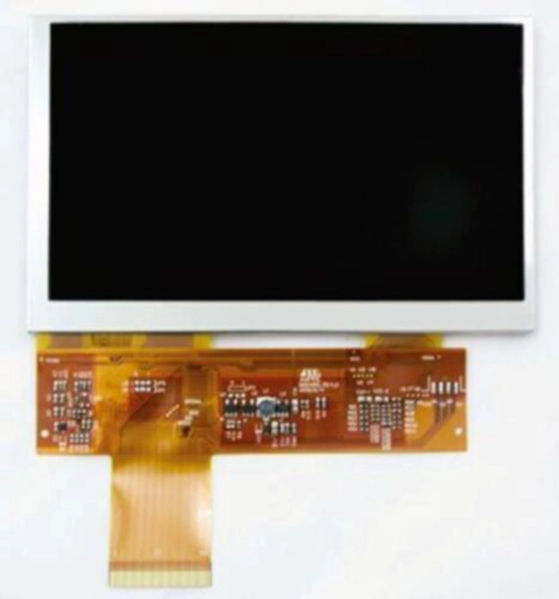

AM-800480L6TMQW-00H 5.0″ a-Si TFT-LCD , Panel for AMPIRE
$0,00
| Weight | 1 kg |
|---|---|
| MPN | |
| Brand |
AMPIRE |
| Resolution | |
| Contrast Ratio | |
| Input Voltage | |
| Lcd Size |
Description
| Brand: | AMPIRE |
| Panel Type: | a-Si TFT-LCD , Panel |
| Panel Size: | 5.0 |
| Resolution: | 800(RGB)¡Á480 , WVGA |
| Display Mode: | TN, Normally White, Transmissive |
| Contrast Ratio: | 250:1 (Typ.) |
| Surface: | Antiglare |
| Brightness: | 800 cd/m? (Typ.) |
| Display Colors: | 16.7M (8-bit) , CIE1931 52% |
| Viewing Angle: | 70/70/70/50 (Typ.)(CR¡Ý10) (L/R/U/D) |
| Frequency: | 60Hz |
| Lamp Type: | WLED Without Driver |
| Signal Interface: | Parallel RGB (1 ch, 8-bit) , 44 pins |
| Input Voltage: | 3.3V (Typ.) |
| Active Area: | 108¡Á64.8 mm |
| Outline: | 119¡Á135¡Á4.7 mm |
| Application: | Industry Application |
| Response Time: | 15/35 (Typ.)(Tr/Td) |
