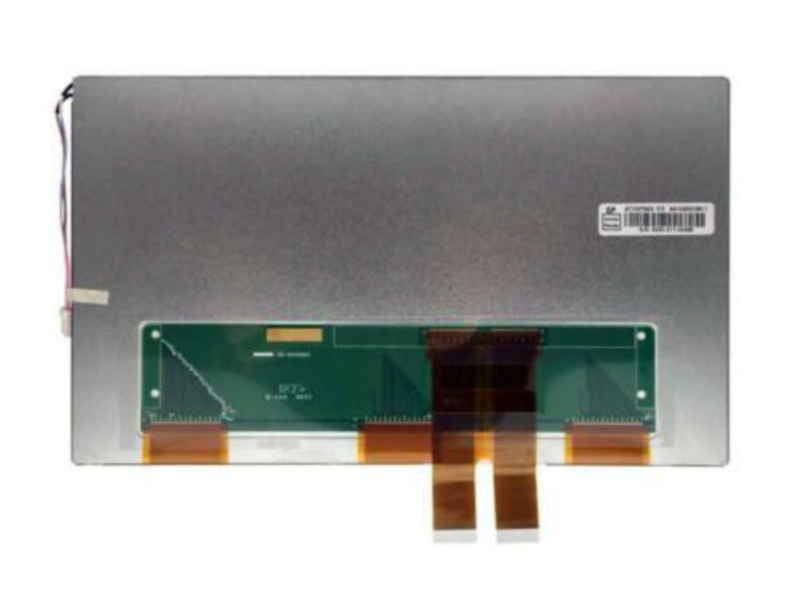

AT102TN03 V.9 10.2″ 800¡Á480 LCD Panel for Innolux
$0,00
| Weight | 1 kg |
|---|---|
| MPN | |
| Brand |
INNOLUX |
| Resolution | |
| Lcd Size |
Description
| Brand: | Innolux |
| Panel Size: | 10.2 |
| Resolution: | 800¡Á480 |
| Backlighting: | WLED |
| Interface: | TTL |
| Surface: | AG |
| Brightness: | 250 |
| Frequency: | 60Hz |
| Active Area: | 222¡Á132.48 |
| Outline: | 235¡Á145.8 |
| TN/VA/IPS: | TN |
| C/R: | 300:1 |
| View Angle: | 65/65/45/65 |
| Colors: | 262K |
| Typ. Depth: | 5.9mm |
| Max. Depth: | 6.1mm |
| Pins: | 60 pins |
| Work Temp.: | -30~85¡ãC |
| Storage Temp.: | -30~85¡ãC |
| Gamut: | 50% |
