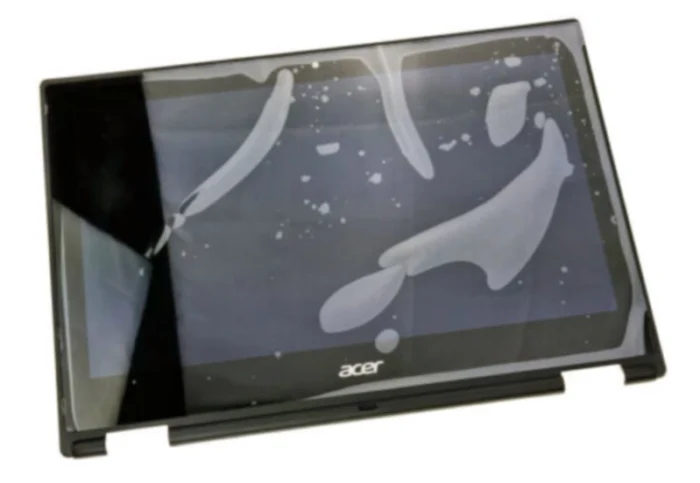

B116XAN04.1 11.6″ a-Si TFT-LCD , Panel for AUO
$0,00
| Weight | 1 kg |
|---|---|
| MPN | |
| Brand |
AUO |
| Resolution | |
| Contrast Ratio | |
| Input Voltage | |
| Lcd Size |
Description
| Brand: | AUO |
| Panel Type: | a-Si TFT-LCD , Panel |
| Panel Size: | 11.6 |
| Resolution: | 1366(RGB)¡Á768 , WXGA |
| Display Mode: | AHVA, Normally Black, Transmissive |
| Contrast Ratio: | 800:1 (Typ.) |
| Surface: | Antiglare, Hard coating (3H) |
| Brightness: | 220 cd/m? (Typ.) |
| Display Colors: | 262K (6-bit) , CIE1931 50% |
| Viewing Angle: | 85/85/85/85 (Typ.)(CR¡Ý10) (L/R/U/D) |
| Frequency: | 60Hz |
| Lamp Type: | WLED Embedded (LED Driver) |
| Signal Interface: | eDP (2 Lanes) , 40 pins |
| Input Voltage: | 3.3V (Typ.) |
| Active Area: | 256.125¡Á144 mm |
| Outline: | 268¡Á168¡Á3 mm |
| Application: | PAD Laptop PC |
| Response Time: | 27 (Typ.)(Tr+Tf) |
