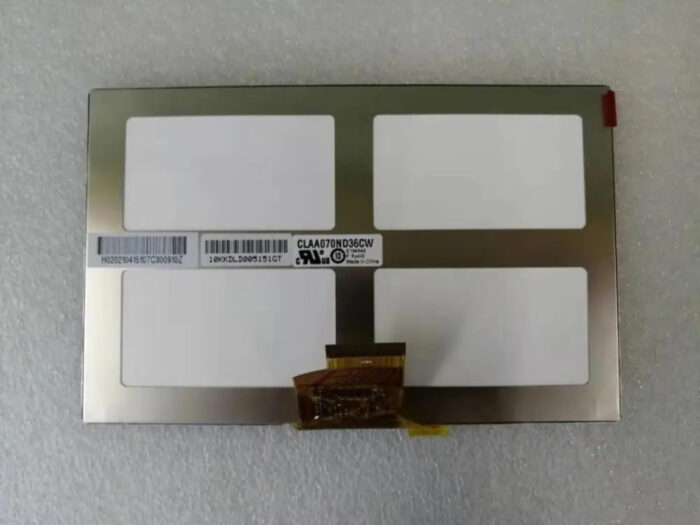

CLAA070ND36CW CPT LCD panel replacement
$43,00
| Weight | 1 kg |
|---|---|
| MPN | |
| Brand |
CPT |
| Resolution | |
| Contrast Ratio | |
| Input Voltage | |
| Lcd Size |
Description
| product_name: | CLAA070ND36CW 7.0″ a-Si TFT-LCD , Panel for CPT |
| Brand: | CPT |
| Panel model: | CLAA070ND36CW |
| Panel Type: | a-Si TFT-LCD , Panel |
| Panel Size: | 7.0 |
| Resolution: | 1024(RGB)×600 , WSVGA |
| Display Mode: | TN, Normally White, Transmissive |
| Contrast Ratio: | 700:1 (Typ.) |
| Surface: | Antiglare, Hard coating (3H) |
| Brightness: | 600 cd/m? (Typ.) |
| Display Colors: | 262K/16.7M (6-bit / 6-bit + Hi-FRC) , CIE1931 50% |
| Viewing Angle: | 80/80/70/60 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency: | 60Hz |
| Lamp Type: | WLED Without Driver |
| Signal Interface: | LVDS (1 ch, 6/8-bit) , 40 pins |
| Input Voltage: | 3.3/9.6/18/-6V (Typ.)(DVDD/AVDD/VGH/VGL) |
| RoHS: | RoHS Compliance |
| Active Area: | 153.6×90 mm |
| Outline: | 165.75×105.39×3.5 mm |
| Application: | MP4 MID UMPC PAD |
| Response Time: | 25 (Typ.)(Tr+Td) |
