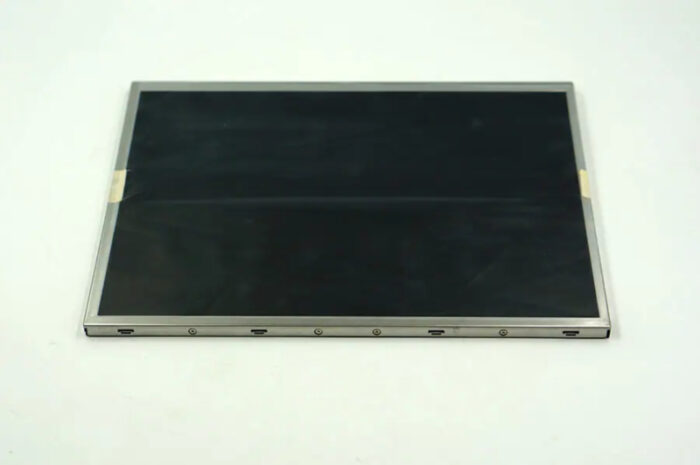

G121X1-L03 Innolux LCD panel replacement
$88,00
| Weight | 1 kg |
|---|---|
| MPN | |
| Brand |
CHI MEI |
| Resolution | |
| Contrast Ratio | |
| Input Voltage | |
| Lcd Size |
Description
| product_name: | G121X1-L03 12.1″ a-Si TFT-LCD Panel for CMO, inventory new |
| Brand: | CHI MEI |
| Panel model: | G121X1-L03 |
| Panel Type: | a-Si TFT-LCDPanel |
| Panel Size: | 12.1″ |
| Resolution: | 1024(RGB)×768 (XGA) |
| Display Mode: | TN, Normally White, Transmissive |
| Contrast Ratio: | 700 : 1 (Typ.) (Transmissive) |
| Surface: | Glare (Haze 0%), Hard coating (3H) |
| Brightness: | 600 cd/m2 (Typ.) |
| Display Colors: | 262K/16.2M (6-bit / 6-bit + FRC) |
| Viewing Angle: | 80/80/70/70 (Typ.)(CR?10) (L/R/U/D) |
| Frequency: | 60Hz |
| Lamp Type: | WLED |
| Signal Interface: | LVDS (1 ch, 6/8-bit) |
| Input Voltage: | 3.3/5.0V (Typ.) |
| Response Time: | 5/11 (Typ.)(Tr/Td) (ms) |
