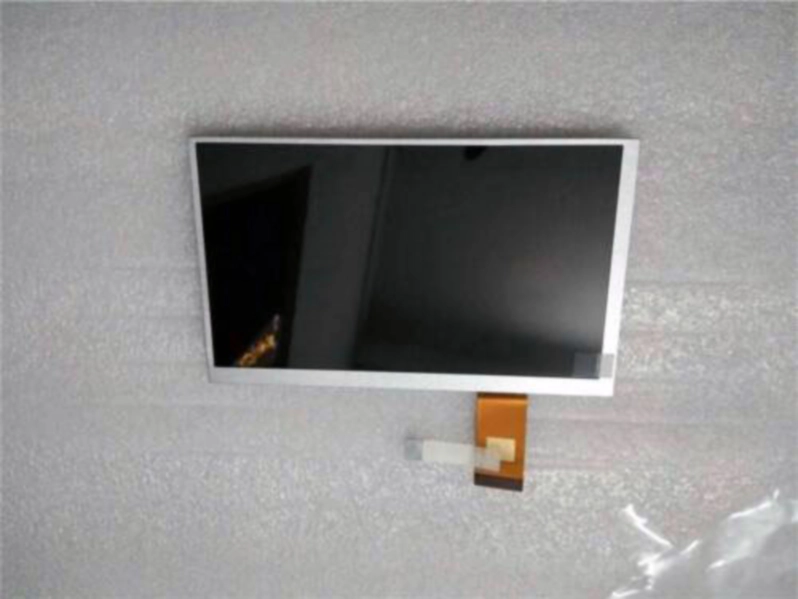

HSD070IFW1-A00 7.0″ a-Si TFT-LCD Panel for HannStar
$33,00
| Weight | 1 kg |
|---|---|
| MPN | |
| Brand |
HannStar |
| Resolution | |
| Contrast Ratio | |
| Input Voltage | |
| Lcd Size |
Description
| Brand: | HannStar |
| Panel Type: | a-Si TFT-LCDPanel |
| Panel Size: | 7.0″ |
| Resolution: | 1024(RGB)¡Á600 (WSVGA) |
| Display Mode: | TN, Normally White, Transmissive |
| Contrast Ratio: | 800 : 1 (Typ.) (Transmissive) |
| Brightness: | 600 cd/m2 (Typ.) |
| Display Colors: | 16.7M (6-bit + Hi-FRC) |
| Viewing Angle: | 80/80/80/70 (Typ.)(CR?10) (L/R/U/D) |
| Frequency: | 60Hz |
| Lamp Type: | WLED |
| Signal Interface: | LVDS (1 ch, 8-bit) |
| Input Voltage: | 3.3/11.0/20/-6.8V (Typ.)(VDD/AVDD/VGH/VGL) |
| Response Time: | 4/12 (Typ.)(Tr/Td) (ms) |
