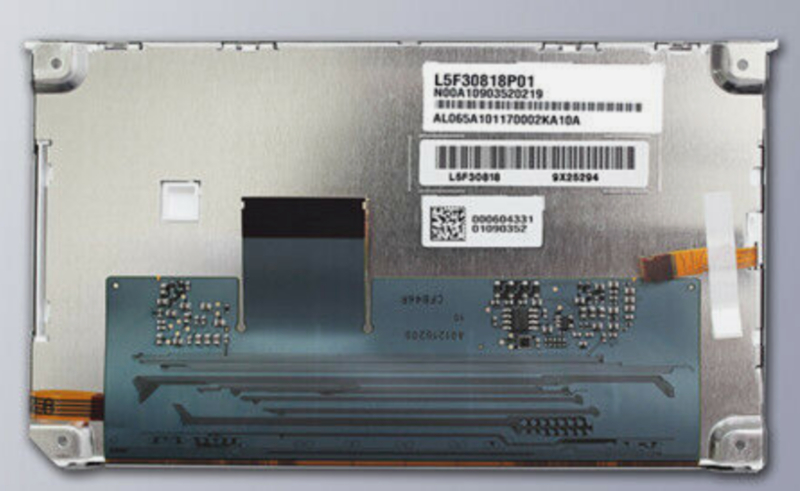

L5F30818P01 Epson LCD panel replacement
$56,00
| Weight | 1 kg |
|---|---|
| MPN | |
| Brand |
EPSON |
| Resolution | |
| Contrast Ratio | |
| Input Voltage | |
| Lcd Size |
Description
| product_name: | SANYO L5F30818P01 6.5″ LCD SCREEN |
| Brand: | EPSON |
| Panel model: | L5F30818P01 |
| Panel Type: | a-si TFT-LCD |
| Panel Size: | 6.5″ |
| Resolution: | 800 X 480 |
| Display Mode: | Normally Black ， Transmissive |
| Contrast Ratio: | 700:1 (Typ.) ( Transmission ) |
| Brightness: | 850 cd/m2 (Typ.) |
| Display Colors: | 262k |
| Viewing Angle: | 80/80/80/80 (Typ.)(CR>=100) |
| Frequency: | 60Hz |
| Lamp Type: | WLED [5s4p] 60k Hours Without Driver |
| Signal Interface: | CMOS 50 pins (1 ch 6-bit) + spi FPC |
| Input Voltage: | 3.3v (Typ.) |
| Pixel Format: | RGB Vertical Stripe |
| Display Area: | 144 X 78.24(mm) |
| Outline Size: | 159.9 X 93.4(mm) |
| Response Time: | 30 (Typ.)(Tr+Td) ms |
| Environment: | Operating Temp.: -30 ~ 85°c; Storage Temp.: -40 ~ 90°c; Vibration Level 3.0g (29.4 m/s2) |
