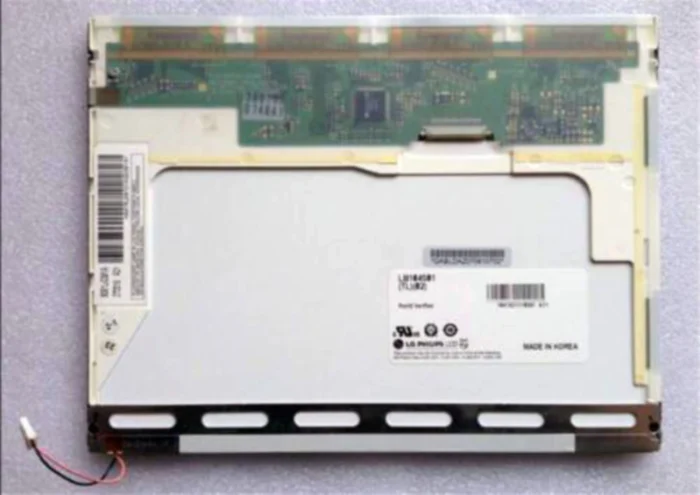

LB104S01 TL-01 LCD Panel
$0,00
| Weight | 1 kg |
|---|---|
| MPN | |
| Brand |
LG.Philips |
| Resolution | |
| Contrast Ratio | |
| Input Voltage | |
| Lcd Size |
Description
| Brand: | LG Philips |
| Panel Type: | a-si TFT-LCD |
| Panel Size: | 10.4″ |
| Resolution: | 800 X 600 |
| Display Mode: | TN£¬ Normally White £¬ Transmissive |
| Contrast Ratio: | 400:1 (Typ.) ( Transmission ) |
| Surface: | Matte £¬Hard coating (3H) |
| Brightness: | 250 cd/m2 (Typ.) |
| Display Colors: | 262k |
| Viewing Angle: | 65/65/45/55 (min.)(CR>=10) |
| Frequency: | 60Hz |
| Lamp Type: | CCFL [1 pcs] 30k Hours Without Driver |
| Signal Interface: | LVDS 20 pins (1 ch 6-bit) |
| Input Voltage: | 3.3v (Typ.) |
| Pixel Format: | RGB Vertical Stripe |
| Display Area: | 211.2 X 158.4(mm) |
| Outline Size: | 224.5 X 172(mm) |
| Response Time: | 6/19 (Typ.)(tr/td) ms |
| Environment: | Operating Temp.: 0 ~ 50¡ãc; Storage Temp.: -20 ~ 60¡ãc; |
