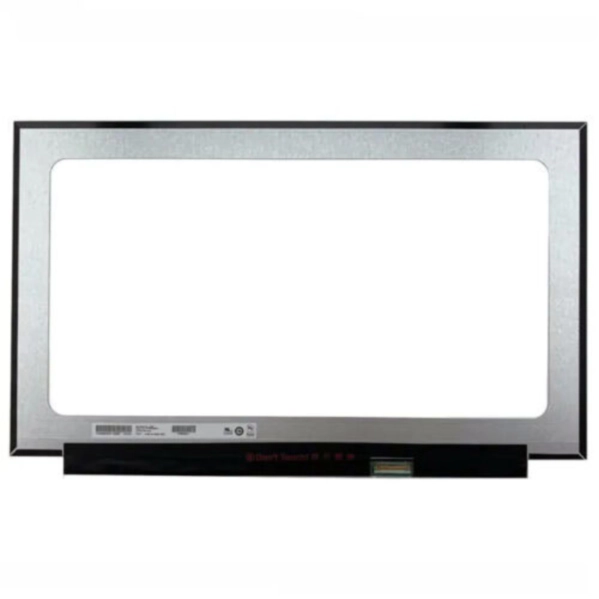

LM156LFCL05 CEC 15.6″ oxide TFT-LCD ,
$0,00
| Weight | 1 kg |
|---|---|
| MPN | |
| Brand |
CEC |
| Resolution | |
| Contrast Ratio | |
| Input Voltage | |
| Lcd Size |
Description
| Brand: | CEC |
| Panel Type: | oxide TFT-LCD |
| Panel Size: | 15.6 |
| Resolution: | 1920 X 1080 |
| Display Mode: | ffs£¬ Normally Black £¬ Transmissive |
| Contrast Ratio: | 1000:1 (Typ.) ™ |
| Surface: | Matte £¬Hard coating (3H) |
| Brightness: | 220 cd/m2 (Typ.) |
| Display Colors: | 262k , 45% ntsc |
| Viewing Angle: | 85/85/85/85 (Typ.)(CR>=10) |
| Frequency: | 60Hz |
| Lamp Type: | WLED , 15k Hours , With LED Driver |
| Signal Interface: | eDP (2 lanes) , 1.2 , hbr1 (2.7g/lane) , 30 pins |
| Input Voltage: | 3.3v (Typ.) |
| Pixel Format: | RGB Vertical Stripe |
| Display Area: | 344.16 X 193.59(mm) |
| Outline Size: | 350.66 X 216.69 X 3.2(mm) |
| Response Time: | 25 (Typ.)(Tr+Td) ms |
| Environment: | Operating Temp.: 0 ~ 50¡ãc; Storage Temp.: -20 ~ 60¡ãc; |
