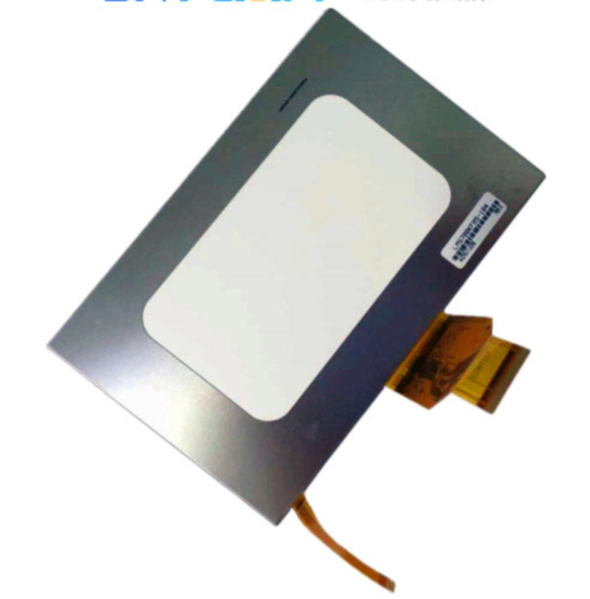

LMS700KF07 7.0″ a-Si TFT-LCD Panel for SAMSUNG With Touch Screen, Big connector
$26,00
| Weight | 1 kg |
|---|---|
| MPN | |
| Brand |
SAMSUNG |
| Resolution | |
| Contrast Ratio | |
| Input Voltage | |
| Lcd Size |
Description
| Brand: | SAMSUNG |
| Panel Type: | a-Si TFT-LCD , Panel |
| Panel Size: | 7.0 |
| Resolution: | 800¡Á480(RGB) , WVGA |
| Display Mode: | TN, Normally White, TMR |
| Contrast Ratio: | 400 : 1 (Typ.) |
| Surface: | Hard coating (3H) |
| Brightness: | 280 cd/m? (Typ.) |
| Display Colors: | 16.7M (8-bit) , CIE1931 51% |
| Viewing Angle: | 65/65/50/60 (Typ.)(CR¡Ý10) (L/R/U/D) |
| Frequency: | 60Hz |
| Lamp Type: | 8S3P WLED Without Driver |
| Signal Interface: | Parallel RGB (1 ch, 8-bit) , 40 pins |
| Input Voltage: | 3.3V (Typ.)(VCC) |
| Active Area: | 152.4¡Á91.44 mm |
| Outline: | 163.2¡Á104¡Á4.7 mm |
| Application: | MP4 VOIP Phone Car Display Digital Photo Frame Portable DVD Player |
| Response Time: | 22 (Typ.)(Tr+Td) |
