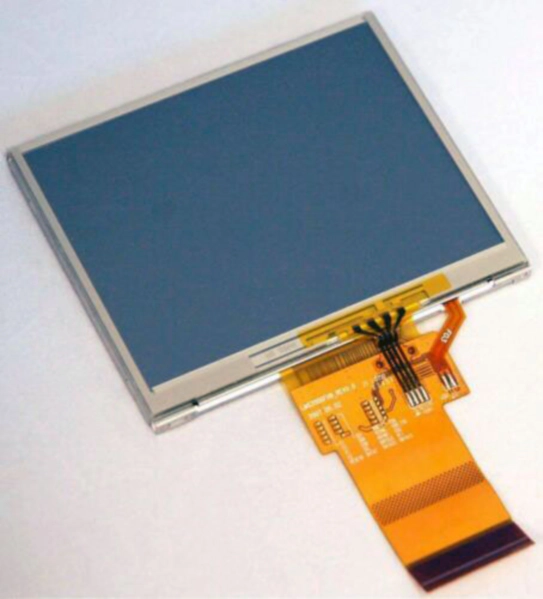

LQ035Q1DG02 3.5″ a-Si TFT-LCD Panel for SHARP
$224,00
| Weight | 1 kg |
|---|---|
| MPN | |
| Brand |
SHARP |
| Resolution | |
| Contrast Ratio | |
| Input Voltage | |
| Lcd Size |
Description
| Brand: | SHARP |
| Panel Type: | a-Si TFT-LCDPanel |
| Panel Size: | 3.5″ |
| Resolution: | 320(RGB)¡Á240 (QVGA) |
| Display Mode: | TN, Normally White, Transmissive |
| Contrast Ratio: | 300 : 1 (Typ.) (Transmissive) |
| Surface: | Antiglare, Hard coating (2H) |
| Brightness: | 320 cd/m2 (Typ.) |
| Display Colors: | 16.7M (6-bit + Hi-FRC) |
| Viewing Angle: | 60/60/40/60 (Typ.)(CR?10) (L/R/U/D) |
| Frequency: | 60Hz |
| Lamp Type: | WLED |
| Signal Interface: | Parallel RGB (1 ch, 8-bit) + SPI |
| Input Voltage: | 3.3/3.3V (Typ.)(VCI/VDDIO) |
| Response Time: | 30/30 (Typ.)(Tr/Td) (ms) |
