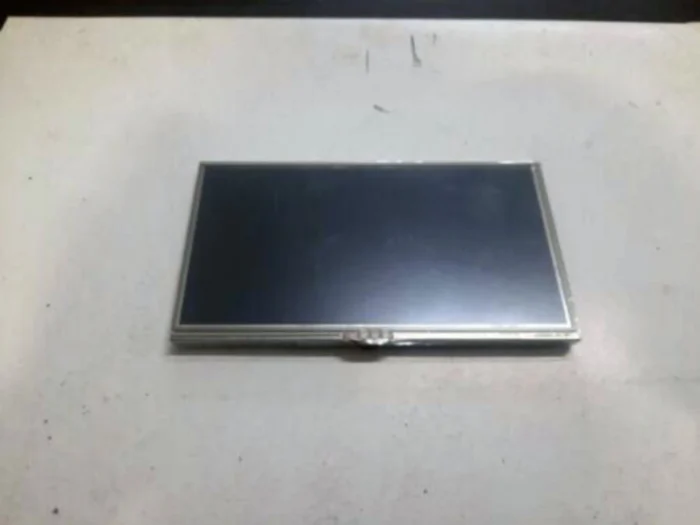

LQ070Y5DG36 7.0″ a-Si TFT-LCD , Panel for SHARP
$134,00
| Weight | 1 kg |
|---|---|
| MPN | |
| Brand |
SHARP |
| Resolution | |
| Contrast Ratio | |
| Input Voltage | |
| Lcd Size |
Description
| Brand: | SHARP |
| Panel Type: | a-Si TFT-LCD , Panel |
| Panel Size: | 7.0 |
| Resolution: | 800¡Á480(RGB) , WVGA |
| Display Mode: | TN, Normally White, Transmissive |
| Contrast Ratio: | 150:1 (Min.) |
| Brightness: | 485 cd/m? (Typ.) |
| Display Colors: | 262K (6-bit) |
| Viewing Angle: | 65/65/50/65 (Typ.)(CR¡Ý10) (L/R/U/D) |
| Frequency: | 60Hz |
| Lamp Type: | 6S4P WLED |
| Signal Interface: | Parallel RGB (1 ch, 6-bit) |
| Input Voltage: | 3.3V (Typ.) |
| Active Area: | 156.4¡Á82.08 mm |
| Outline: | 165.2¡Á92.4¡Á10.56 mm |
| Application: | Car Display |
| Response Time: | 20/30 (Typ.)(Tr/Td) |
