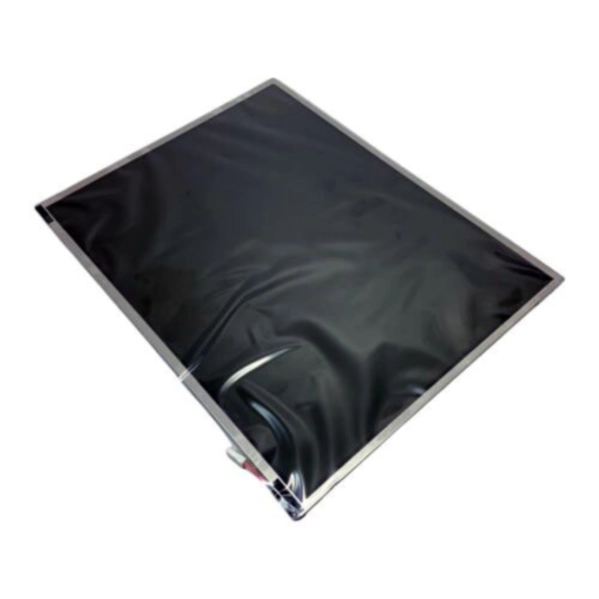

LTM12C505N 12.1″ LTPS TFT-LCD Panel for TOSHIBA
$90,00
| Weight | 1 kg |
|---|---|
| MPN | |
| Brand |
Toshiba |
| Resolution | |
| Contrast Ratio | |
| Input Voltage | |
| Lcd Size |
Description
| Brand: | TOSHIBA |
| Panel Type: | LTPS TFT-LCDPanel |
| Panel Size: | 12.1″ |
| Resolution: | 1024(RGB)¡Á768 (XGA) |
| Display Mode: | TN, Normally White, Transmissive |
| Contrast Ratio: | 150 : 1 (Min.) (Transmissive) |
| Surface: | Antiglare, Hard coating (3H) |
| Brightness: | 150 cd/m2 (Typ.) |
| Display Colors: | 262K (6-bit) |
| Viewing Angle: | 30/30/10/20 (Min.)(CR?10) (L/R/U/D) |
| Frequency: | 60Hz |
| Lamp Type: | CCFL |
| Signal Interface: | LVDS (1 ch, 6-bit) |
| Input Voltage: | 3.3V (Typ.) |
| Response Time: | 50/50 (Max.)(Tr/Td) (ms) |
