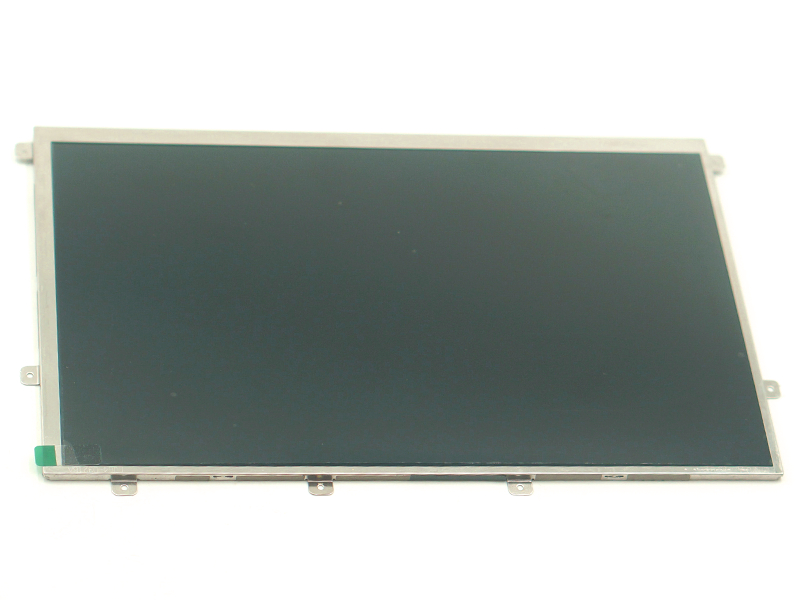

LTN101AL01-F01 Samsung LCD panel replacement for Pad & Tablet
$36,00
| Weight | 1 kg |
|---|---|
| MPN | |
| Brand |
SAMSUNG |
| Resolution | |
| Contrast Ratio | |
| Input Voltage | |
| Lcd Size |
Description
| product_name: | LTN101AL01-F01 10.1″ a-Si TFT-LCD Panel for SAMSUNG |
| Brand: | SAMSUNG |
| Panel model: | LTN101AL01-F01 |
| Panel Type: | a-Si TFT-LCDPanel |
| Panel Size: | 10.1″ |
| Resolution: | 1280(RGB)×800 (WXGA) |
| Display Mode: | PLS, Normally Black, Transmissive |
| Contrast Ratio: | 500 : 1 (Typ.) (Transmissive) |
| Surface: | Glare (Haze 0%) |
| Brightness: | 400 cd/m2 (Typ.) |
| Display Colors: | 16.7M (8-bit) |
| Viewing Angle: | 80/80/80/80 (Typ.)(CR?10) (L/R/U/D) |
| Frequency: | 60Hz |
| Lamp Type: | WLED |
| Signal Interface: | LVDS (1 ch, 8-bit) |
| Input Voltage: | 3.3V (Typ.) |
| Response Time: | 30 (Typ.)(Tr+Td) (ms) |
