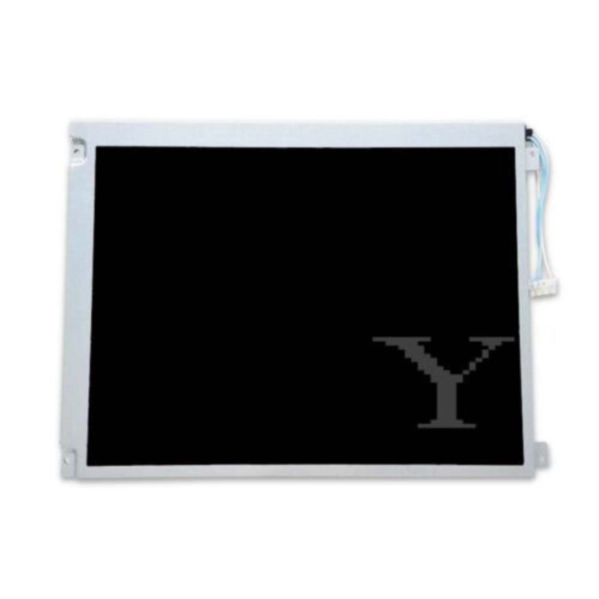

MAA121DSL03 12.1″ a-Si TFT-LCD Panel for Mitsubishi MDTI
$0,00
| Weight | 1 kg |
|---|---|
| MPN | |
| Brand |
Mitsubishi MDTI |
| Resolution | |
| Contrast Ratio | |
| Input Voltage | |
| Lcd Size |
Description
| Brand: | Mitsubishi MDTI |
| Panel Type: | a-Si TFT-LCDPanel |
| Panel Size: | 12.1″ |
| Resolution: | 800(RGB)¡Á600 (SVGA) |
| Display Mode: | TN, Normally White, Transmissive |
| Contrast Ratio: | 500 : 1 (Typ.) (Transmissive) |
| Surface: | Antiglare, Hard coating (3H) |
| Brightness: | 350 cd/m2 (Typ.) |
| Display Colors: | 262K/16.7M (6-bit / 6-bit + Hi-FRC) |
| Viewing Angle: | 65/65/45/75 (Typ.)(CR?10) (L/R/U/D) |
| Frequency: | 60Hz |
| Lamp Type: | CCFL |
| Signal Interface: | LVDS (1 ch, 6/8-bit) |
| Input Voltage: | 3.3V (Typ.) |
| Response Time: | 10/30 (Typ.)(Tr/Td) (ms) |
