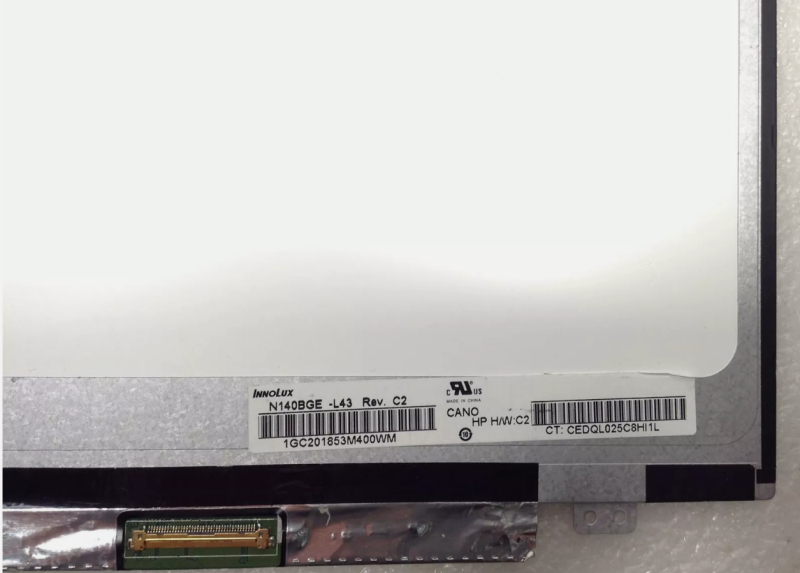

N140BGE-L43 Innolux LCD panel replacement for Laptop
$47,00
| Weight | 1,5 kg |
|---|---|
| MPN | |
| Brand |
CHIMEI INNOLUX |
| Resolution | |
| Contrast Ratio | |
| Input Voltage | |
| Lcd Size |
Description
| product_name: | N140BGE-L43 14.0″ a-Si TFT-LCD,Panel for CHIMEI INNOLUX |
| Brand: | CHIMEI INNOLUX |
| Panel model: | N140BGE-L43 |
| Panel Type: | a-Si TFT-LCD,Panel |
| Panel Size: | 14.0 |
| Resolution: | 1366(RGB)×768 (WXGA) |
| Display Mode: | TN, Normally White, Transmissive |
| Contrast Ratio: | 650 : 1 (Typ.) (Transmissive) |
| Surface: | Glare (Haze 0%), Hard coating (3H) |
| Brightness: | 200 cd/m2 (Typ.) |
| Display Colors: | 262K (6-bit) |
| Viewing Angle: | 45/45/20/45 (Typ.)(CR?10) (L/R/U/D) |
| Frequency: | 60Hz |
| Lamp Type: | WLED |
| Signal Interface: | LVDS (1 ch, 6-bit) |
| Input Voltage: | 3.3V (Typ.) |
| RoHS: | RoHS Compliance |
| Application: | Laptop |
| Response Time: | 4/6 (Typ.)(Tr/Td) (ms) |
