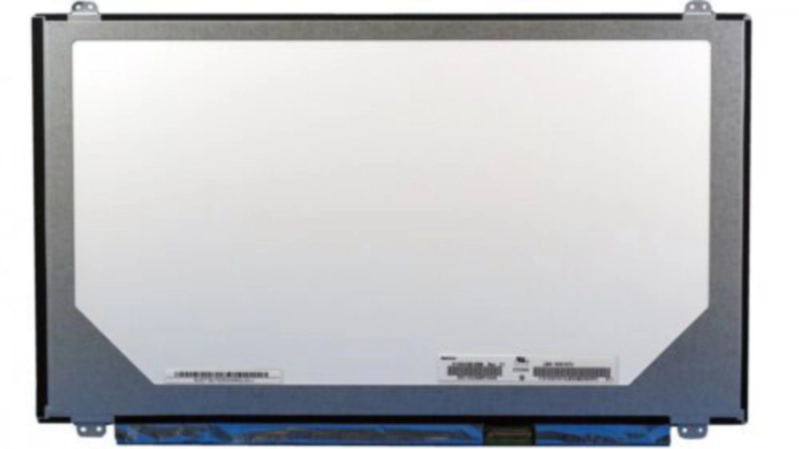

N156HGE-EAL Rev.C1 15.6″ a-Si TFT-LCD , Panel for INNOLUX
$53,00
| Weight | 1 kg |
|---|---|
| MPN | |
| Brand |
INNOLUX |
| Resolution | |
| Contrast Ratio | |
| Input Voltage | |
| Lcd Size |
Description
| Brand: | INNOLUX |
| Panel Type: | a-Si TFT-LCD , Panel |
| Panel Size: | 15.6 |
| Resolution: | 1920(RGB)¡Á1080 , FHD |
| Display Mode: | TN, Normally White, Transmissive |
| Contrast Ratio: | 500:1 (Typ.) |
| Surface: | Antiglare (Haze 24%), Hard coating (3H) |
| Brightness: | 220 cd/m? (Typ.) |
| Display Colors: | 262K (6-bit) , CIE1931 94% |
| Viewing Angle: | 85/85/20/35 (Typ.)(CR¡Ý10) (L/R/U/D) |
| Frequency: | 60Hz |
| Lamp Type: | WLED Embedded (LED Driver) |
| Signal Interface: | eDP (2 Lanes) , 30 pins |
| Input Voltage: | 3.3V (Typ.) |
| Active Area: | 344.16¡Á193.59 mm |
| Outline: | 359.5¡Á224.3¡Á3.2 mm |
| Application: | Laptop PC |
| Shape Style: | Slim (PCBA Flat, Depth ¡Ü3.2mm) |
| Response Time: | 3/8 (Typ.)(Tr/Td) |
