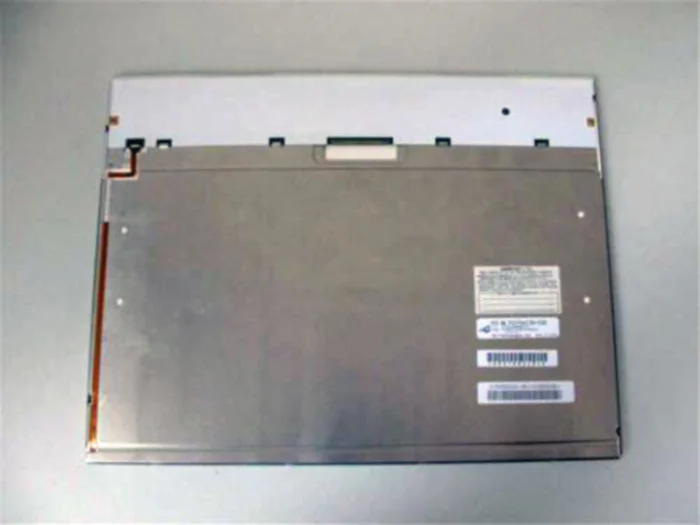

NL10276AC30-53D 15.0 inch Lcd Panel for NLT,Without Touch
$0,00
| Weight | 1 kg |
|---|---|
| MPN | |
| Brand |
NLT |
| Resolution | |
| Touch Panel | |
| Contrast Ratio | |
| Input Voltage | |
| Lcd Size |
Description
| Brand: | NLT |
| Panel Type: | a-Si TFT-LCD , LCM |
| Panel Size: | 15.0 inch |
| Resolution: | 1024(RGB)¡Á768 , XGA |
| Display Mode: | TN, Normally White, Transmissive |
| Contrast Ratio: | 600:1 (Typ.) (TM) |
| Touch Panel: | Without |
| Surface: | Antiglare, Hard coating (3H) |
| Brightness: | 500 cd/m? (Typ.) |
| Display Colors: | 262K/16.2M 60% (CIE1931) |
| Viewing Angle: | 80/80/80/80 (Typ.)(CR¡Ý10) |
| Frequency: | 60Hz |
| Lamp Type: | WLED , Embedded (LED Driver) |
| Signal Interface: | LVDS (1 ch, 6/8-bit) , 30 pins , Connector |
| Input Voltage: | 3.3V (Typ.) |
| Pixel Format: | RGB Vertical Stripe |
| Display Area: | 304.128(W)¡Á228.096(H) mm |
| Application: | Industry Application |
| Outline Size: | 326.5(W)¡Á253.5(H) ¡Á6.8(D) mm |
| Response Time: | 3/5 (Typ.)(Tr/Td) |
| Environment: | Operating Temp.: -20 ~ 70 ¡ãC ; Storage Temp.: -20 ~ 70 ¡ãC |
