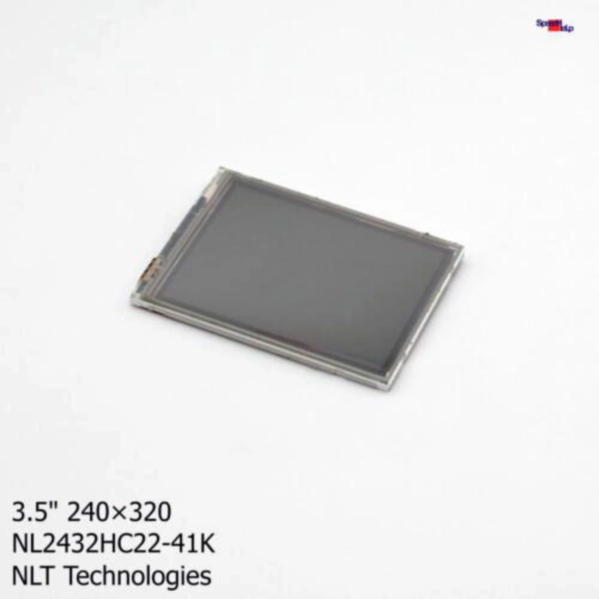

NL2432HC22-41K 3.5″ a-Si TFT-LCD Panel for NEC
$0,00
| Weight | 1 kg |
|---|---|
| MPN | |
| Brand |
NEC |
| Resolution | |
| Contrast Ratio | |
| Input Voltage | |
| Lcd Size |
Description
| Brand: | NEC |
| Panel Type: | a-Si TFT-LCDPanel |
| Panel Size: | 3.5″ |
| Resolution: | 240(RGB)¡Á320 (QVGA) |
| Display Mode: | TN, Normally White, Transflective |
| Contrast Ratio: | 150 : 1 (Typ.) (Transmissive) |
| Surface: | Clear, Hard coating (3H) |
| Brightness: | 200 cd/m2 (Typ.) |
| Display Colors: | 262K (6-bit) |
| Viewing Angle: | 30/30/30/35 (Typ.)(CR?5) (L/R/U/D) |
| Frequency: | 60Hz |
| Lamp Type: | WLED |
| Signal Interface: | CMOS (1 ch, 6-bit) + SPI |
| Input Voltage: | 3.0V (Typ.) |
| Response Time: | 7/23 (Typ.)(Tr/Td) (ms) |
