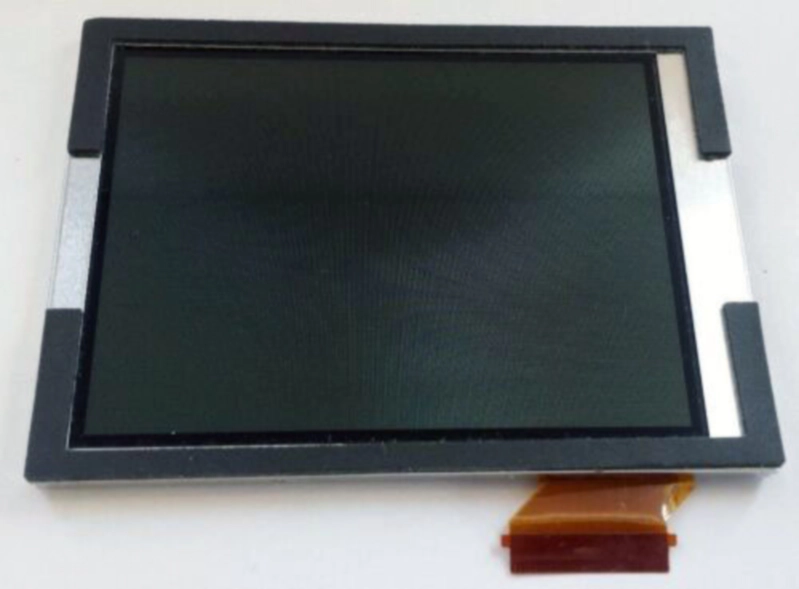

TD035SHEC1 3.5″ LTPS TFT-LCD Panel for Toppoly without touch screen
$48,00
| Weight | 1 kg |
|---|---|
| MPN | |
| Brand |
Toppoly |
| Resolution | |
| Contrast Ratio | |
| Input Voltage | |
| Lcd Size |
Description
| Brand: | Toppoly |
| Panel Type: | LTPS TFT-LCDPanel |
| Panel Size: | 3.5″ |
| Resolution: | 240(RGB)¡Á320 (QVGA) |
| Display Mode: | TN, Normally White, Transflective |
| Contrast Ratio: | 100 : 1 (Typ.) (Transmissive) |
| Brightness: | 130 cd/m2 (Typ.) |
| Display Colors: | 262K (6-bit) |
| Viewing Angle: | 60/60/50/60 (Typ.)(CR?10) (L/R/U/D) |
| Lamp Type: | WLED |
| Signal Interface: | Parallel RGB (1 ch, 6-bit) + SPI |
| Input Voltage: | 2.8/5.0/10/-5.5V (Typ.)(DVDD/AVDD/VGH/VVEE) |
| Response Time: | 35 (Typ.)(Tr+Td) (ms) |
