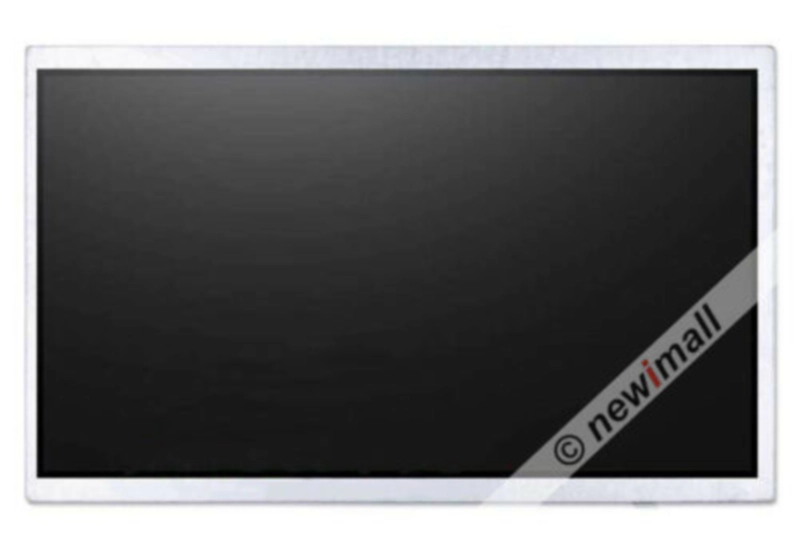

TM101DDHG01 10.1″ a-Si TFT-LCD Panel for TIANMA without touch screen
$63,00
| Weight | 1 kg |
|---|---|
| MPN | |
| Brand |
Tianma |
| Resolution | |
| Contrast Ratio | |
| Input Voltage | |
| Lcd Size |
Description
| Brand: | TIANMA |
| Panel Type: | a-Si TFT-LCD , Panel |
| Panel Size: | 10.1 |
| Resolution: | 1024(RGB)¡Á600 , WSVGA |
| Display Mode: | TN, Normally White, Transmissive |
| Contrast Ratio: | 800:1 (Typ.) |
| Surface: | Antiglare, Hard coating (3H) |
| Brightness: | 420 cd/m? (Typ.) |
| Display Colors: | 262K/16.7M (6-bit / 6-bit + Hi-FRC) , CIE1931 47% |
| Viewing Angle: | 80/80/75/80 (Typ.)(CR¡Ý10) (L/R/U/D) |
| Frequency: | 60Hz |
| Lamp Type: | 5S4P WLED Without Driver |
| Signal Interface: | LVDS (1 ch, 6/8-bit) , 40 pins |
| Input Voltage: | 3.3/11/22/-7V (Typ.)(VCC/AVDD/VGH/VGL) |
| Active Area: | 222.72¡Á125.28 mm |
| Outline: | 235¡Á143¡Á4.9 mm |
| Application: | Car Display Industry Application PAD |
| Response Time: | 7/9 (Typ.)(Tr/Td) |
