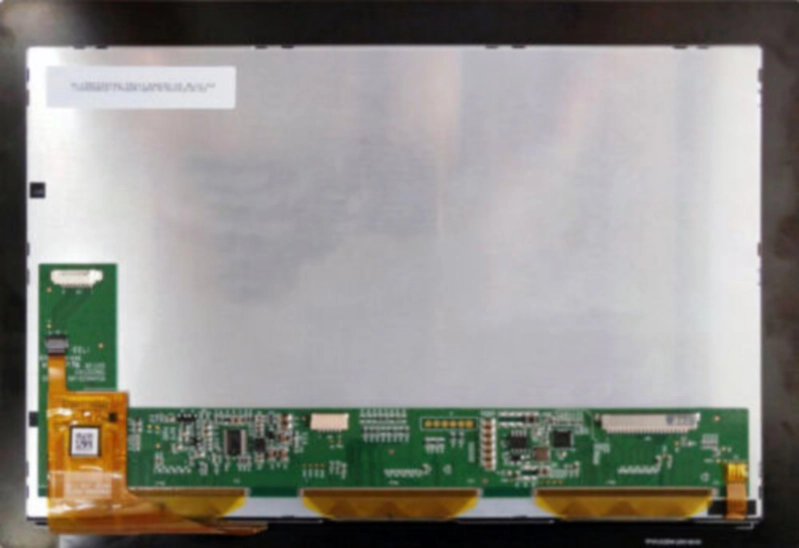

TM101JVHG32 10.1″ a-Si TFT-LCD , Panel for TIANMA
$0,00
| Weight | 1 kg |
|---|---|
| MPN | |
| Brand |
Tianma |
| Resolution | |
| Contrast Ratio | |
| Input Voltage | |
| Lcd Size |
Description
| Brand: | TIANMA |
| Panel Type: | a-Si TFT-LCD , Panel |
| Panel Size: | 10.1 |
| Resolution: | 1280(RGB)¡Á800 , WXGA |
| Display Mode: | SFT, Normally Black, Transmissive |
| Contrast Ratio: | 800:1 (Typ.) |
| Surface: | Hard coating |
| Brightness: | 850 cd/m? (Typ.) |
| Display Colors: | 262K/16.7M (6-bit / 6-bit + Hi-FRC) , CIE1931 50% |
| Viewing Angle: | 80/80/80/80 (Min.)(CR¡Ý10) (L/R/U/D) |
| Frequency: | 60Hz |
| Lamp Type: | WLED Embedded (LED Driver) |
| Signal Interface: | LVDS (1 ch, 6/8-bit) , 20 pins |
| Input Voltage: | 3.3V (Typ.) |
| Active Area: | 216.96¡Á135.6 mm |
| Outline: | 258.66¡Á177.3¡Á10.8 mm |
| Application: | Car Display Industry Application PAD |
| Response Time: | 25 (Typ.)(Tr+Td) |
