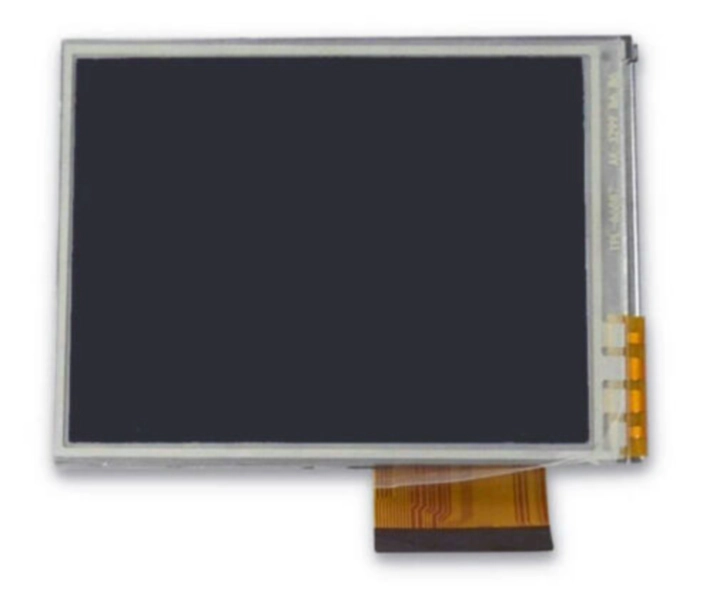

TX09D80VM3CEA 3.5″ a-Si TFT-LCD Panel for HITACHI
$0,00
| Weight | 1 kg |
|---|---|
| MPN | |
| Brand |
HITACHI |
| Resolution | |
| Contrast Ratio | |
| Input Voltage | |
| Lcd Size |
Description
| Brand: | HITACHI |
| Panel Type: | a-Si TFT-LCDPanel |
| Panel Size: | 3.5″ |
| Resolution: | 240(RGB)¡Á320 (QVGA) |
| Display Mode: | TN, Normally White, TMR |
| Contrast Ratio: | 300 : 1 (Typ.) (Transmissive) |
| Brightness: | 400 cd/m2 (Typ.) |
| Display Colors: | 262K (6-bit) |
| Viewing Angle: | 60/80/70/70 (Typ.)(CR?10) (L/R/U/D) |
| Frequency: | 60Hz |
| Lamp Type: | WLED |
| Signal Interface: | CMOS (1 ch, 6-bit) |
| Input Voltage: | 3.3/8.48/15.0/-5.0V (Typ.)(DVDD/AVDD/VGH/VGL) |
| Response Time: | 30 (Typ.)(Tr+Td) (ms) |
